UBR Series, UPS Li-ion Battery System

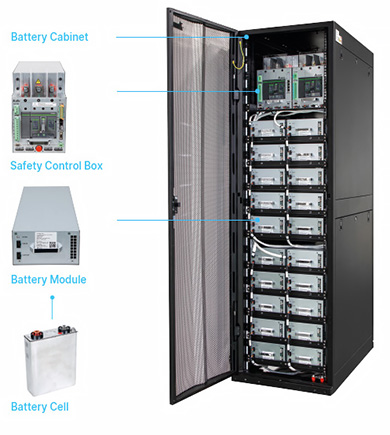

Battery Cabinet

• Standard 19" rack cabinet

• Pre-installed series connection bus bar

• Integrated main BMS with gateway hub design for parallel communication connection

• Top cable entry (power and signal)

• Front access for easy maintenance

• Black start capability

Safety Control Box

• High-power applications

• Built-in safety breaker (MCCB)

• Dual relay/diode protection loop

• Built-in battery management unit (BMU)

• Meets isolation standard for power & control

Battery Module

• IP20 rating

• Contains 14 cells in a series (14S1P) in a 3U height enclosure

• Plug-in connector with easy install and safety design

• Integrated cell monitor unit (CMU)
  - Monitors the voltage and temperature of each cell
  - Communicates with the BMU for data collection and alarm notifications

Battery Cell

• High-power/long-life prismatic cell

• High capacity 60 Ah – Delta P140

• Nominal voltage 3.7 V
